• About

    SewerVUE's in-pipe GPR is a revolutionary patent-pending technology for underground pipe inspection. The remotely operated Surveyor robot merges CCTV data with ground penetrating radar (GPR) measurements to accurately identify pipe wall thickness, composition defects, rebar cover, locate cracks, voids and cavities outside underground non-metallic pipes. The GPR equipment is track mounted and equipped with two high frequency antennae, which can be can be remotely rotated to any clocking angle between 9 and 3 o’clock positions. The Surveyor can be adjusted for any pipe diameters of 18 - 30 inch (450 - 750mm).

    SewerVUE's proprietary software analyzes the GPR data and provides easy to understand imagery of all identified elements. In-pipe GPR enables pro-active preventative maintenance planning with thorough assessments of critical infrastructure.

  • Why GPR is Superior

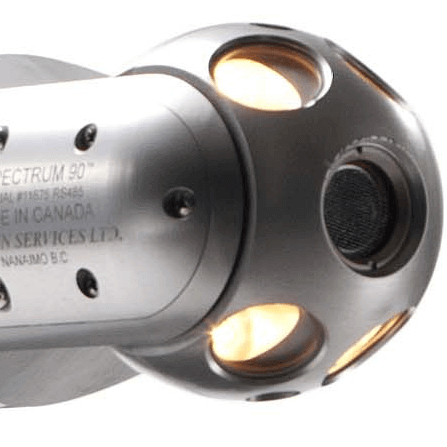

    Current inspection technologies are unable to “see through” concrete pipes because competitors use inferior technology such as CCTV or laser and sonar to inspect large diameter pipes. CCTV, the oldest and least expensive inspection tool can only provide visual information. Laser and sonar provide geometric data that can indirectly indicate pipe corrosion or loss – laser and sonar can not actually “see” through the pipe wall and can not measure actual pipe wall thickness, rebar cover or locate voids outside the pipe or give useful information about the quality of the pipe material.

  • No more sinkholes

    The primary applications include mapping sewers, water mains and tunnels for regular inspection, quality control and for preventative maintenance. SewerVUE can also be used for testing the condition and thickness of liners, or for installation or quality control of concrete or vitrified clay pipes. Regular SewerVUE inspections allow the location of voids caused by damaged pipes before they develop into sinkholes.

SewerVUE News Release – August 2010

August 26, 2010
FOR IMMEDIATE RELEASE
SewerVUE RELEASES GPR / PPR VIDEO
A video clip showing the SewerVUE Surveyor in-pipe ground penetrating radar pipe inspection system during deployment and operation has been uploaded to YouTube and can be viewed at: http://www.youtube.com/user/SewerVUE. This video illustrates the main functions of the robot including the tensioned arm movement of the pipe [...]

Read more »

SewerVUE News Release – July 2010

July 28, 2010
FOR IMMEDIATE RELEASE
New Reporting Format Incorporating GIS Capabilities in Plan Views

In March 2010, SewerVUE Technology Corp. completed beta testing its proprietary “Pipe Penetrating Radar Data Interpretation Application (PP-RADIAN).” This was highlighted in the March Newsletter. Since then, SewerVUE has completed an enhancement of this software that enables presentation of the in-pipe GPR (Pipe [...]

Read more »
