Floats
SewerVUE Sensor Embedded Floats
MPIS Float Options
SewerVUE Technologies has designed two multi-sensor pipe inspection platforms: MPIS Float, and the MPIS custom Float. Designed for easy, quantitative assessment, ranging in different hardware features, sensors, and software to accommodate your advanced pipe inspection needs.

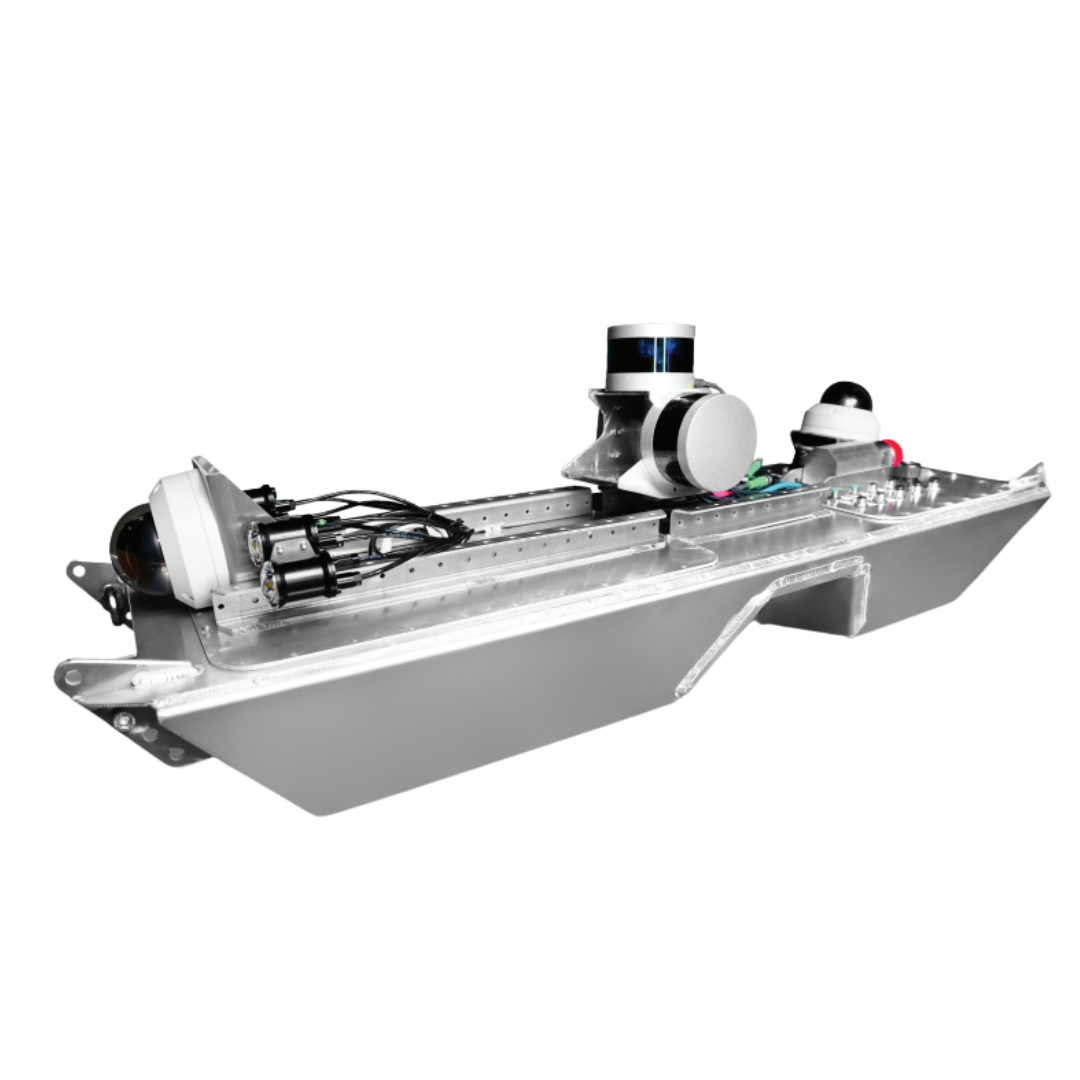

MPIS Float
- Call us for Pricing
- HARDWARE FEATURES
- 1000m Standard Tether Length
- HD CCTV
- Profiling Sonar
- 18" (450mm) pipes and up!
- 3D LiDAR
- SOFTWARE FEATURES
- DataVUE Recording Software
- Full In-Depth Report with Appendices
- Geospacially accurate point-cloud
- $2/ft Fee for Data Processing

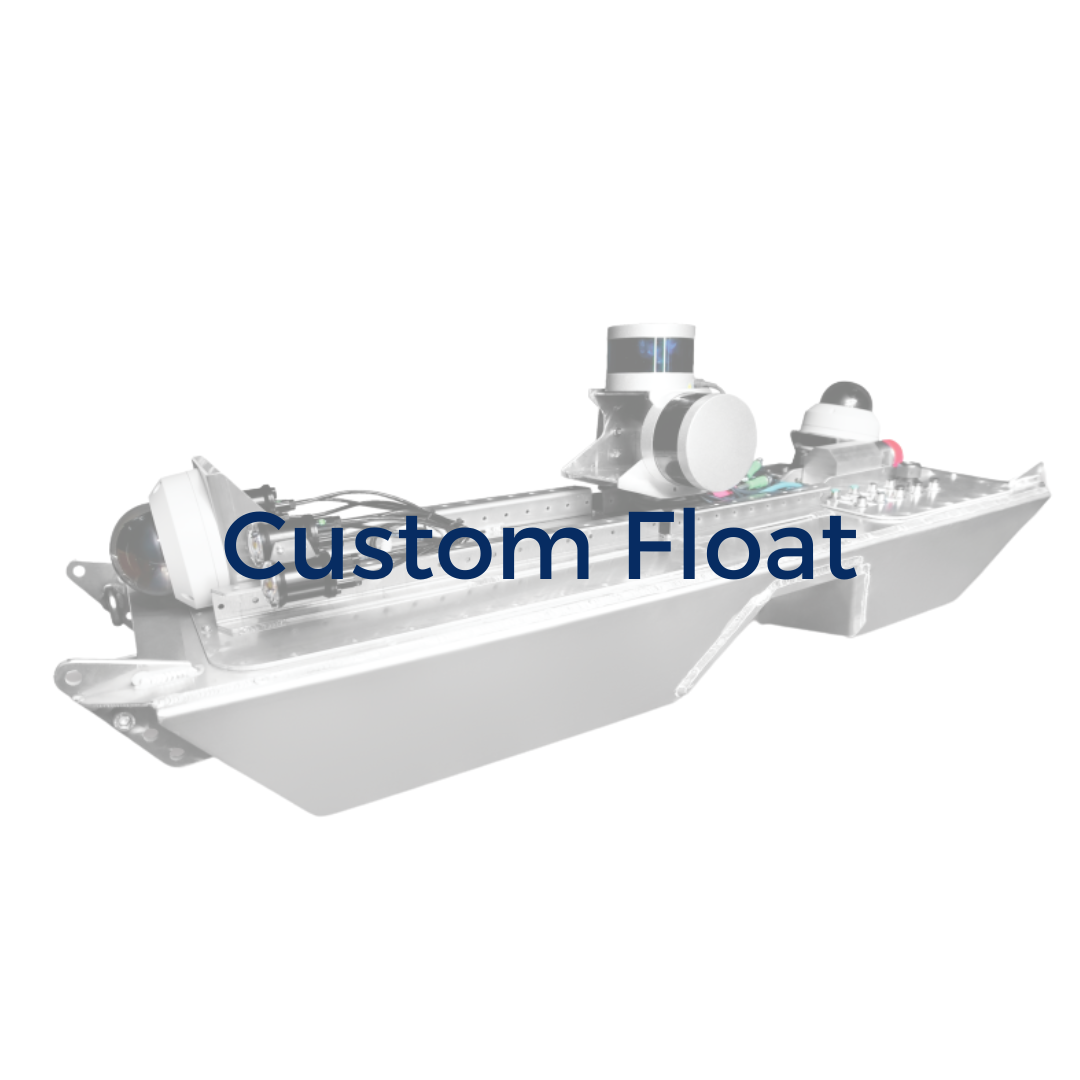

Custom Float
- Call us for Pricing
- HARDWARE FEATURES
- 10Km + fiber options available
- Any video (8k, 360°, etc.)
- Hi-Res profiling sonar or underwater LiDAR
- 18" (450mm) and up!
- 3D LiDAR
- SOFTWARE FEATURES
- DataVUE Recording Software
- Full In-Depth Report with Appendices
- Geospacially accurate point-cloud
- $2/ft for Data Processing
Float Features
SewerVUE’s long range pipe inspection technology combines state of the art data collection and analysis with proprietary processing and software. SewerVUE's sensor inspection tools can be accommodated on any Float platform, ranging from HD-CCTV, accurate 3D LiDAR, Sonar Imaging, and our patented technology, Pipe Penetrating Radar. Floats can be fully submerged in water and waste water. The sonar data provides pipe profile below the flow line together with sediment depth and volume. This can be combined with LiDAR readings to give a full view of the pipe.
Inspection reports provide integrated and quantitative corrosion and debris measurements, 360 degree virtual pan/tilt/zoom function, video, laser and sonar flats.
Easily visualize, verify, and record data with a click of a button with DataVUE sensor recording software, a user-friendly platform that anyone can use! View your data in real-time and check all connectivity of your sensors.
